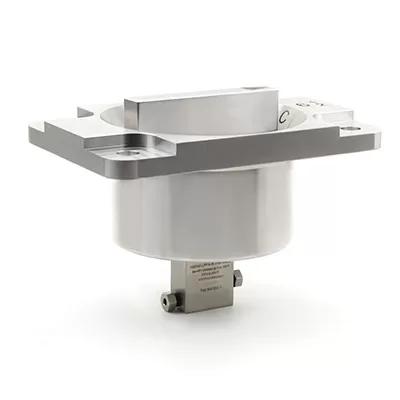

Hikelok subsea needle valves meet performance, safety and reliability expectations in the deepest water and harshest environments in the offshore oil and gas industry. As wells have become deeper, Hikelok has been a leader at developing new and innovative ways to control the increasing temperature and pressure requirements at these greater depths.
Features

• Maximum working pressure: 20,000 psig (1,379 bar)
• Working temperature: 0°F to 250°F (-18°C to 121°C)
• Maximum water depth: 13,800 ft (4,200 meters)
• Orifice: 0.203″Rated CV: 0.75
• Standard stem seal material: Glass filled PTFE
• Packing is under the threads of valve stem
• 316 cold-worked stainless steel constructione
• NACE MR0175 compliant
• Wide selection of tube and pipe end fittings available

Download Datasheet
