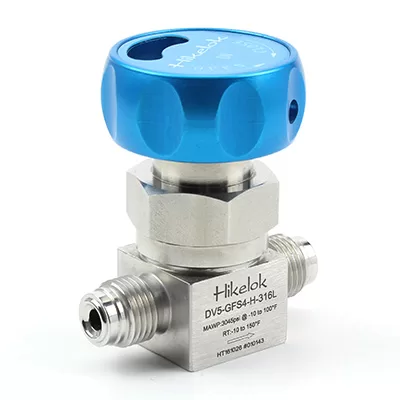

Hikelok Diaphragm Valves-DV5 series provide stainless steel,brass,carbon steel body material.DV5 support low-pressure and high-pressure type. A broad selection of valve body, seat, and seal materials provide a wide range of pressures and temperatures at which the valve may be used.The Diaphragm Valves are suitable for ultrahigh-purity applications.
Features:

• 316L VIM-VAR stainless steel body is available
• Suitable for ultrahigh-purity applications
• Low pressure maximum working pressure: 250 psig (17.2 bar)
• High pressure maximum working pressure: 3045 psig (210 bar)
• Working temperature: -10°F to 150°F (-23°C to 65°C)Variety of end connections
• Fully contained PCTFE seat design provides excellentresistance to swelling and contamination
• Wetted Surface Electropolished,Roughness Ra finishedto an average of Ra5 μin.(0.13 μm)
• Manual or penumatic actuation
• Helium leak tested,maximum leak rate of 1×10-9std cm3/s
• Low-pressure and high-pressure models316 stainless steel, brass and alloy body material
• Variety of end connectionsCan be used in vacuum applications
