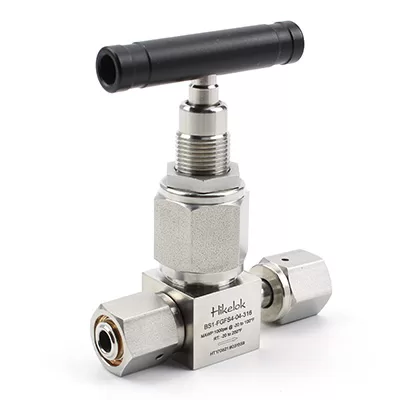

Hikelok BS2 series bellows-sealed valves enhance reliability, versatility, and safety—with a secondary containment system that prevents leaks to atmosphere even if the primary seal fails.Working pressure is up to 2500 psig (172 bar),working temperature is from -20℉ to 1200℉ (-28℃ to 649℃ ). Isolate system fluids and achieve reliable, leak-tight performance with Hikelok BS2 series bellows-sealed valves which use a packless design and a gasketed or welded seal. They are ideal for applications where the seal to atmosphere is critical, and we offer multiple options for general and high-purity service.
Features

• Upper packing provides secondary containment system above the bellows
• Hydraulic-formed multilayer bellows enhanced cycle life
• Nonrotating stem tip eliminates galling within the seat area
• Strictly controlled bellows stroke to improve safety and cycle life
• Replaceable bellows and stem assembly
• Regulating, conical, and spherical stem tips available
• Panel, bottom, and side mounting available
• Double lock-pins enable steady and durable fastening of the handle
• Handle color options are available
• Every Hikelok bellows-sealed valve is factory tested with helium to a maximum leak rate of 4×10-9 std cm3/s at the seat, envelope and all seals
