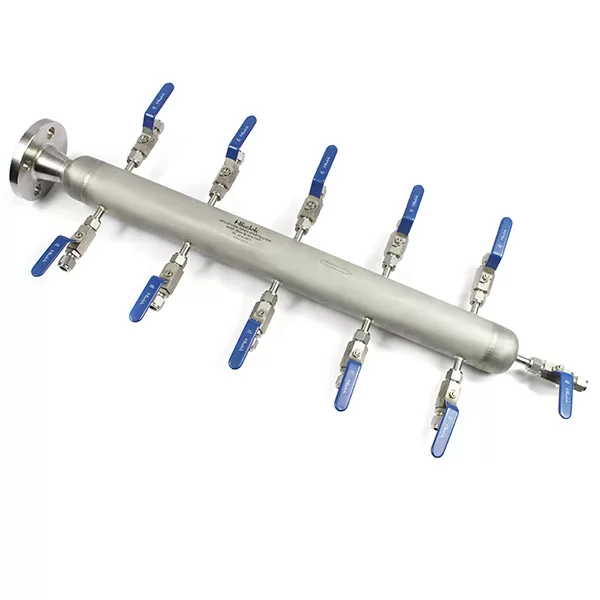

Hikelok Air Headers support NPS size from 1/4 to 2 inches.Working pressure up to 300 psig (20.6 bar).Working temperaturas from -40°F to 450°F(-40℃ to 232℃). The Air Headers are used to supply several users with instrument air. Besides multiple types of standard styles, we also supply the Air Headers in accordance with specific customer demands.There are red, yellow, and blue handles are available.We provide 304,316stainless steel materials.
Features:

• Working pressure up to 300 psig (20.6 bar)
• Working temperaturas from -40°F to 450°F(-40℃ to 232℃)
• The standard main line is Sch 40 pipe
• Distribution ports are BV3 or BV5 Series ball valves
• Large clearance between stem and disc allows disc to move freelylnlet Connection: flange, threaded welded.
• Three Bonnet designs: Bolted Bonnet,Outside ScDrain Connection: ball valves, needle valves,Hikelok tube fittings threadedStainless steel body materialColor coded handles
