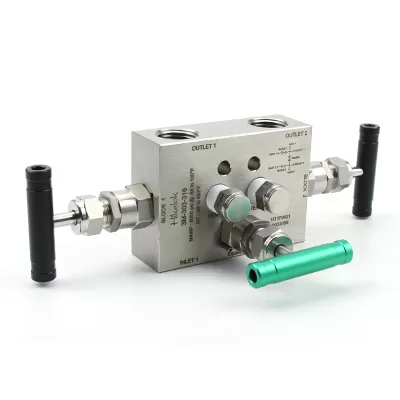

Hikelok 3 valve manifolds are designed for differential pressure applications. 3-valve manifolds is composed of three interrelated three valves. According to the function of each valve in the system, it can be divided into: high pressure valve on the left, low pressure valve on the right, and balance valve in the middle. Its function is to connect pressure gauge with the pressure point
Features:

• working pressures: Stainless steel up to 6000 psig (413 bar) Alloy C-276 up to 6000 psig (413 bar)
• Alloy 400 up to 5000 psig (345 bar)
• Working temperatures: PTFE packing from -65℉ to 450℉ (-54℃ to 232℃)
• Graphite packing from -65℉ to 1200℉ (-54℃ to 649℃)
• Orifice: 0.157 in. (4.0 mm), CV: 0.35
• Upper stem and lower stem design, Stem threads above packing protected from system media
• Safety back seating seals in fully open positionTesting for every valve with nitrogen at the maximum working pressure
